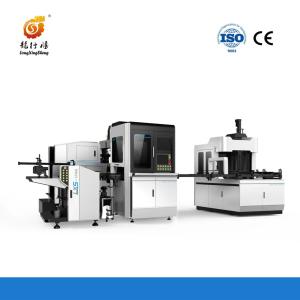

LS-1246G Automatic Multi-Functional Rigid Box Machine For Box & Hardcover Making Factory
LS-1246G Automatic rigid box making mahchine is convenient for box making and hardcover(book cover) making manufacturers & supplies. This machine has four main steps:includes box corner pasting, paper feeding&gluing, paper and box positioning, box packing and pressing once.
This machine adopts visual positioning, simple positioning and high precision to ensure high accuracy box making. This machine is suitable for orders above 1000pcs. It works in a wide range. The maximum box length is 600mm, the maximum box height is 400mm, and the maximum height is 130mm. LS-1246G is equipped with paper feeding device, which can position hardcover books. The maximum number of feeding cardboard sheets is five.
Specs of autoamtic multi-functional rigid box making machine | Type | LS-1246G |
| Paper size(max) | L800*W600mm |
| paper size(min) | L135*W100mm |
| Max cardboard size | L760*W560mm |
| Min cardboard size | L120*W100mm |
| Box size(length) | L100-600mm |
| Box size(width) | W60-400mm |
| Box size(height) | H15-130mm |
| Paper thickness | 80-350g/m2 |
| Cardboard thickness | 0.8-3mm |
| Edge folding size | 10-90mm |
| Turn in depth | 15-80mm |
| Working speed | 15-25 pcs/min |
| Motor power | 13kw/380v 3phase |
| Heating power | 8kw |
| Air pressure | 40L/min 0.8MPa |
| Weight of machine | 3500kg |
| Machine dimension | L6500*W3800*H3000mm |
Machine advantages
1. Multi-functional, LS-1246G has rigid box making function and hardcover(book cover note book cover and so on) positioning function. 2. Can connect with four sides wrapping machine to make hard cover.
3. No need to move camera.
4. Max box length 600mm, Max box width 400mm, Max box height 120mm.
5. Edge folding length 10-100mm
6. Wrapping into bottom length 100mm
7. YAMAHA Robotic arm
8. Double Germany cameras (1000 pixels)
9. Mitsubishi servo motor.
10. Panasonic PLC
Visual positioning system. Applied the double basler camera. Robotic arm to positioning the box on the glued paper.
Ensure machine working speed and the higher accuracy
Forming part. Applied the box picker to feeding box to puching rod. It can using the wooden mold and plastic mold.
